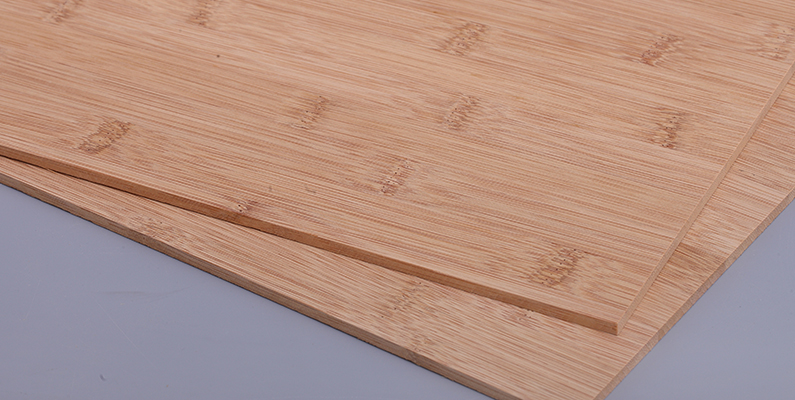

Single Layer Bamboo Panel Horizontal Carbonized 5mm
📝 Product Overview
Single-Layer Horizontal Carbonized 5mm Bamboo Panel (also known as single-layer flat-pressed bamboo sheets or architectural veneers) is a high-density, eco-luxury surfacing material engineered for sleek interior cladding, furniture backings, premium cabinetry facing, and laser/CNC design work. By flat-pressing selected Moso bamboo strips in a unified horizontal orientation, this thin-profile panel beautifully showcases the traditional, prominent structural bamboo “knuckles” and natural organic nodes repeating across its face.
This specialized series features a sleek 5mm thickness engineered as a single-layer horizontal solid board, perfectly combining high flexibility with the immense tensile strength of mature bamboo. To achieve its elegant Carbonized (Caramel / Amber Toned) finish, the raw bamboo strips are high-pressure steamed for 15 minutes, caramelizing the plant’s natural sugars to lock in a deep, uniform hue throughout the entire thickness. Pressed under massive hydraulic force using zero-emission bonding agents, these unfinished 2440x1220mm sheets provide a sustainable, modern alternative to traditional hardwood veneers, outperforming regular woods in surface hardness.
🔬 Technical Specifications
| Parameter | Specifications & Details |
|---|---|
| Item Number | BB - BC - 5HC |
| Product Category | Single-Layer Thin Industrial Bamboo Panels / Slabs |
| Structural Profile | Single-Layer Solid Matrix (Horizontal Flat-Pressed Grain) |
| Color Finish | Carbonized (Deep Caramel / Warm Amber Toned) |
| Standard Sheet Size | 2440 x 1220 x 5 mm (Standard 4’ x 8’ Thin Sheet) |
| Surface Calibration | Kiln-Dried, Sanded Smooth, Double-Faced Unfinished |
| Surface Grain Width | 3/4“ (Approx. 20mm) Wide Horizontal Flat Grain Strips |
💎 Key Advantages
- Traditional Bamboo Aesthetics: The horizontal flat-pressed grain showcases the classic 3/4“ wide strips with visible organic nodes and knuckles, celebrating the authentic, botanical heritage of bamboo.
- Remarkable Hardness & Resilience: Although only 5mm thick, bamboo’s structural fiber density makes this panel 16% harder than North American Hard Maple, offering superior impact resistance and high dimensional stability.
- Endless Design Versatility: Optimally calibrated for laser cutting, precision CNC routing, custom wrapping, and high-end veneer work. The solid edge grain stays flawless without splitting or cracking.
- Eco-Conscious Architecture: Crafted from 100% rapidly renewable mature Moso bamboo and premium non-toxic bonding agents to ensure zero-formaldehyde emissions, fully complying with international indoor green building standard requirements.
🏭 Manufacturing Process
Our heavy-duty thin industrial bamboo panels are engineered using premium Moso bamboo stalks harvested at peak maturity from ecological forestry zones in Anhui, Jiangxi, Fujian, and Zhejiang provinces, with our main extraction base nestled within the Huangshan Mountain range.
- Precision Slicing & Planing: Raw mature bamboo poles are cut, split, and planed into fine, uniform rectangular strips.
- Pot-Steaming Carbonization: The bamboo strips are placed in a high-pressure treatment pot and steamed for 15 minutes to fully caramelize internal starches, safeguarding the panel from future wood-boring pests while locking in the rich amber color.
- Kiln Drying & Sanding: Strips are kiln-dried to an optimized, uniform moisture content and sanded flat.
- Cross-Laminated Single-Layer Matrix: Coated evenly with premium non-toxic adhesive matrices, the strips are arranged in parallel, flat-pressed layers to form a unified, single-ply solid sheet.
- Heavy Hydraulic Hot-Pressing: The aligned layers are subjected to immense hydraulic pressure and heat-cured into solid, stable 2440x1220x5mm sheets.
🗺️ Primary Applications
With its lightweight, high-density structural profile, this 5mm horizontal caramel panel is engineered for:
- Premium Surface Cladding: High-end architectural wall paneling, ceiling inserts, minimalist door skins, and kitchen island surrounds.
- Eco-Luxury Millwork: Modern cabinet facings, custom furniture backings, lightweight shelving, retail display components, and precision CNC/laser crafts.

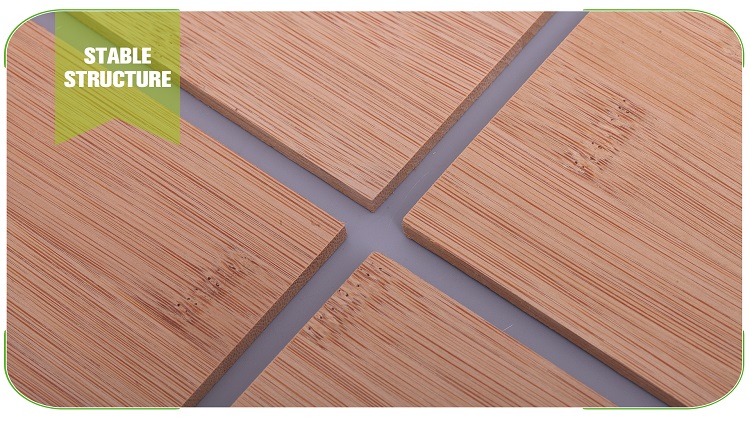

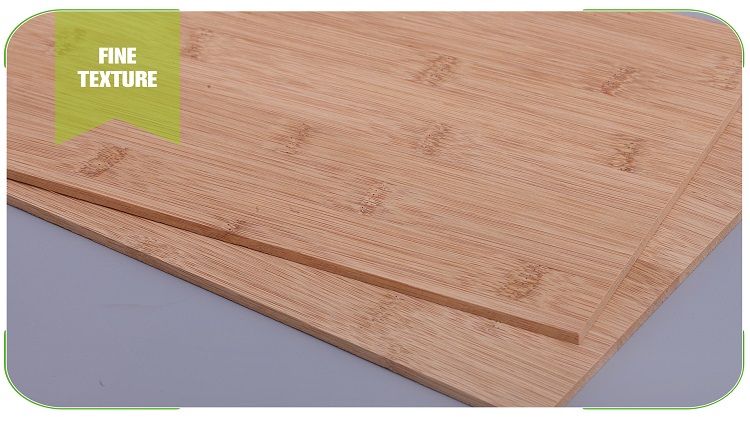

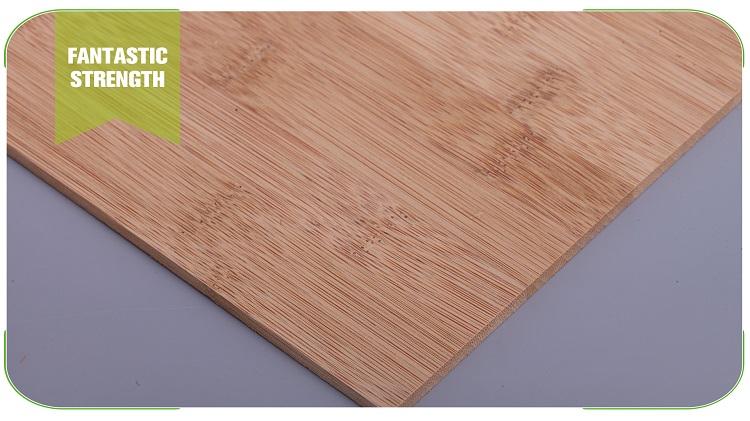

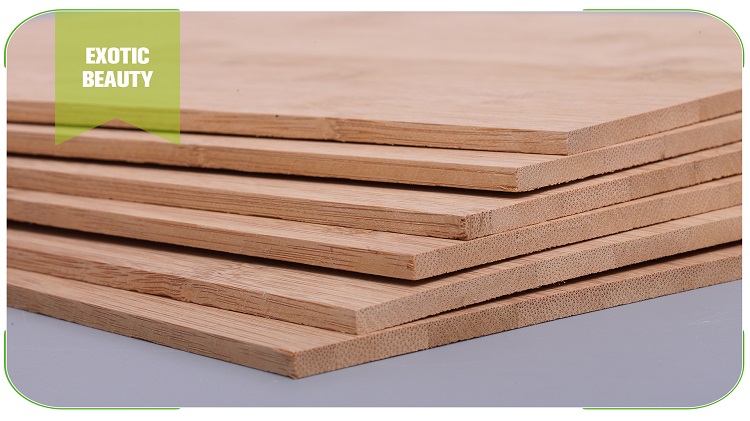

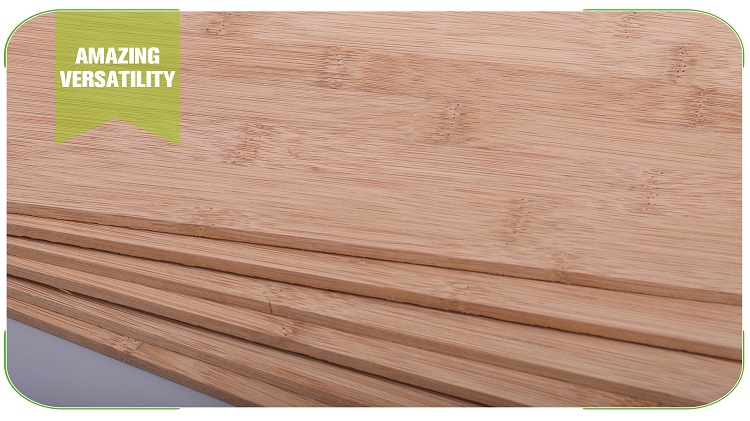

🖼️ Product Gallery

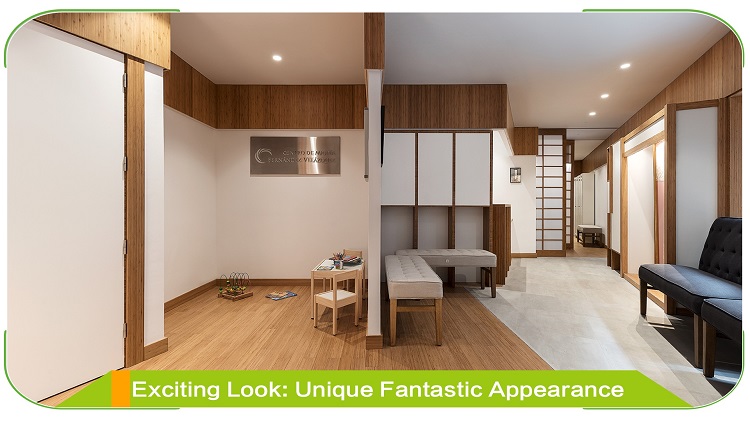

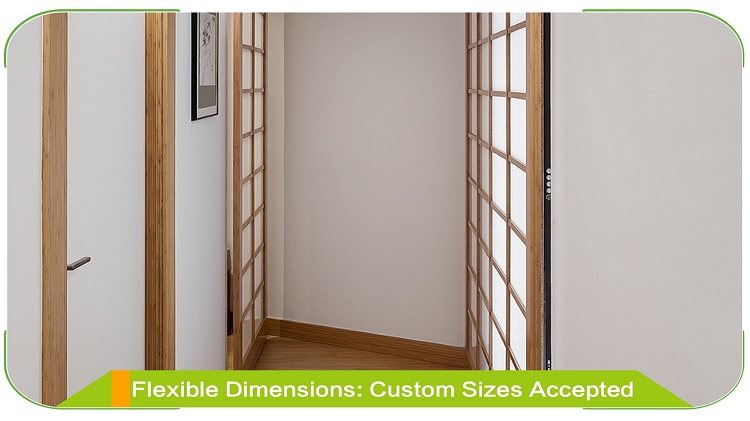

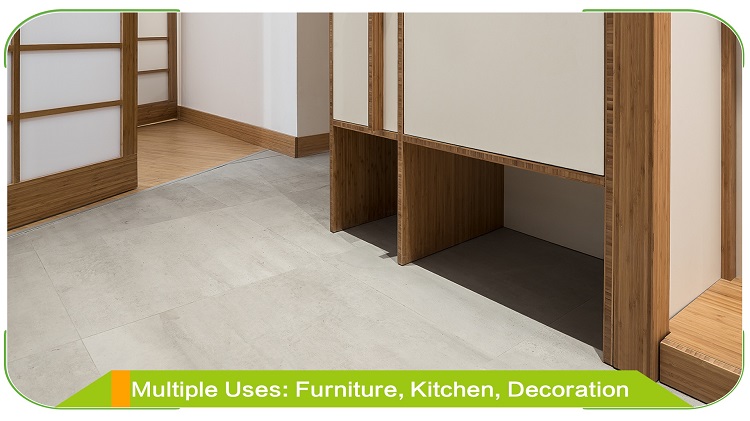

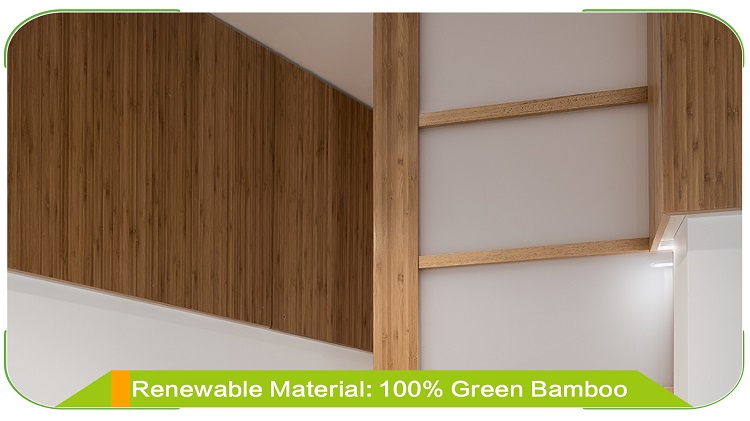

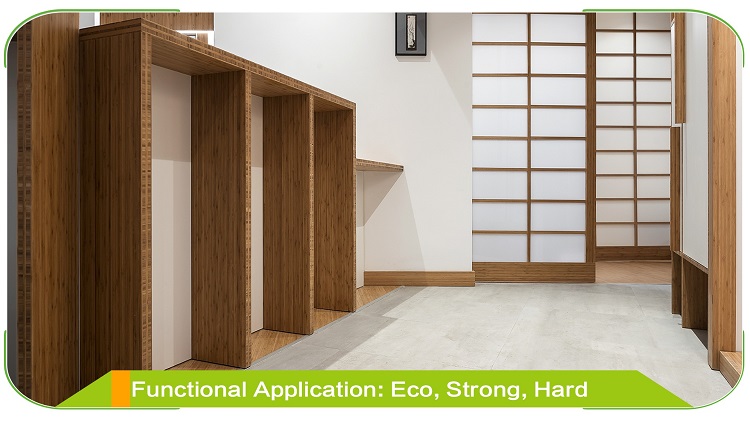

🏡 Installation Showcase
