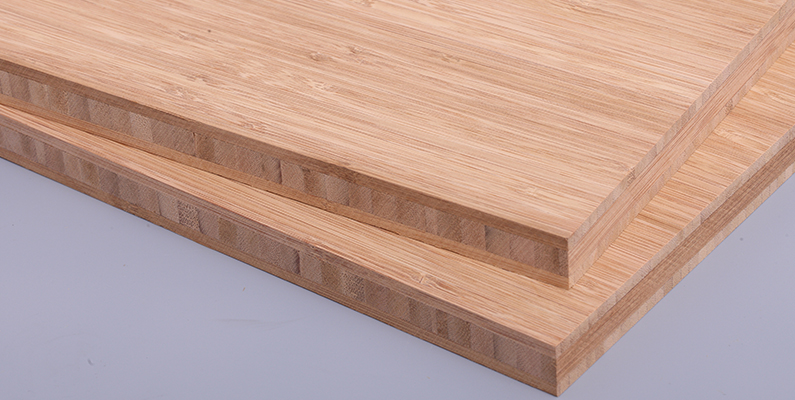

Bamboo Plywood Sheets Vertical Carbonized 20mm
📝 Product Overview
Vertical Carbonized Bamboo Plywood (also known as side-pressed industrial bamboo panels or sheets) is a high-performance, eco-luxury surfacing and structural material engineered for premium interior millwork, cabinetry, and architectural joinery. By orienting selected Moso bamboo strips on edge in a unified vertical alignment, this panel minimizes the visibility of traditional bamboo “knuckles,” providing a sleeker, continuous, and flowing fine-line linear grain appearance across its face.
This series features a 20mm (approx. 3/4“) thickness built via a specialized 3-layer structural profile with a high-stability vertical core. To achieve the elegant Carbonized (Caramel / Amber Toned) color finish, the raw bamboo materials are pressure-steamed for 15 minutes, caramelizing the plant’s natural sugars to yield a deep, uniform hue throughout the board. Cross-laminated and hydraulic heat-pressed, these unfinished 4’x8’ sheets offer a free-formaldehyde emission rating and deliver 3 to 4 times the dimensional stability of traditional Red Oak.
🔬 Technical Specifications
| Parameter | Specifications & Details |
|---|---|
| Item Number | BB - BC - 19VC (20mm) |
| Product Category | Multi-layer Industrial Bamboo Plywood / Panels |
| Structural Profile | 3-Layer Cross-Laminated (Vertical Side-Pressed Faces + Vertical Core) |
| Color Finish | Carbonized (Deep Caramel / Warm Amber Toned) |
| Standard Sheet Size | 2440 x 1220 x 20 mm (Standard 4’ x 8’ x 3/4“ Sheet) |
| Surface Calibration | Kiln-Dried, Sanded Smooth, Double-Faced Unfinished |
| Surface Grain Width | 1/4“ (Approx. 6.35mm) Wide Fine Vertical Linear Grain Strips |
💎 Key Advantages
- Clean Linear Edge Aesthetics: The vertical side-pressed grain appears as elegant 1/4“ fine strips on the face, reducing organic nodes for a modern, minimalist look. The multi-ply edge profile remains highly coveted by designers for visible countertop edges and high-end joinery.
- Unrivaled Engineering Stability: The multi-ply cross-lamination matrix neutralizes natural wood tension, making these 20mm sheets 3 to 4 times more dimensionally stable than premium Oak, preventing warping, splitting, or cupping.
- Flawless Machining Performance: Perfectly calibrated for effortless cutting, routing, and sanding using standard CNC or conventional woodworking equipment; takes stains, oils, and protective finishes exceptionally well due to its open-grained, low-resin composition.
- Eco-Conscious Architecture: Manufactured using strict eco-safe bonding techniques to ensure zero-formaldehyde emissions, easily satisfying international indoor green building criteria.
🏭 Manufacturing Process
Our heavy-duty industrial bamboo plywood is engineered using premium Moso bamboo stalks harvested at peak maturity from ecological forestry zones in Anhui, Jiangxi, Fujian, and Zhejiang provinces, with our main extraction base nestled within the Huangshan Mountain range.
- Precision Slicing & Planing: Raw mature bamboo poles are cut, split, and planed into fine, uniform rectangular strips.
- Pot-Steaming Carbonization: The bamboo strips are placed in a high-pressure treatment pot and steamed for 15 minutes to fully caramelize internal starches, safeguarding the panel from future wood-boring pests while locking in the rich amber color.
- Kiln Drying & Sanding: Strips are kiln-dried to an optimized, uniform moisture content and sanded flat.
- Side-Pressed & Cross-Laminated Stacking: Coated evenly with premium non-toxic adhesive matrices, the strips are oriented on edge (vertical grain) and arranged in cross-laminated layers over a solid vertical core to counteract directional stress.
- Heavy Hydraulic Hot-Pressing: The stacked layers are subjected to immense hydraulic pressure and heat-cured into solid, stable 2440x1220mm sheets.
🗺️ Primary Applications
With its superior load-bearing capacity and striking edge aesthetics, this 20mm vertical caramel sheet is engineered for:
- Premium Custom Joinery: Luxury kitchen worktops, heavy-duty island countertops, bathroom vanities, and visible staircase steps.
- Modern Furniture Design: Executive desks, designer dining tables, retail display fixtures, and architectural wall paneling.
